MMEC HEAT EXCHANGER DEVELOPMENT PROGRAM
Modern Group senior management is launching a total solution program in the heat exchanger market. Heat exchangers transfer heat between a source and a working fluid used in cooling and heating processes. The heat exchanger market is broad, with applications in petrochemical plants, petroleum refineries, natural-gas processing, power stations, chemical plants, space heating, refrigeration, air conditioning, and sewage treatment.
Modern Group has supplied numerous projects with heat exchangers for over a decade, including shop-built modules and site-assembled modules. During that period, Modern's scope was fabrication and supply only.
Modern Group is now engaged in Thermal Design, Mechanical and Equipment Design, Steel Structure Design, Finite Element Analysis, Piping Design, and Instrumentation & Control Systems Design. Please get in touch with us if your business is interested in cooperation in this area.
Heat Exchanger Details
Below is some heat exchanger introductory information that we will update as we progress.
Thermal & Structure Design
MMEC is offering intergrated design & engineeing services for heat exchnagers.

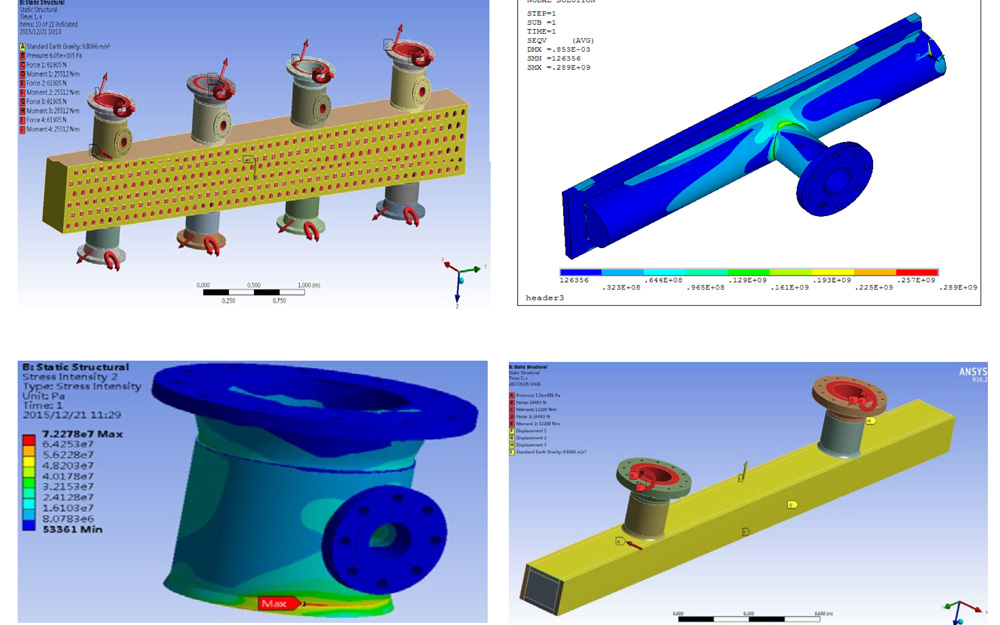

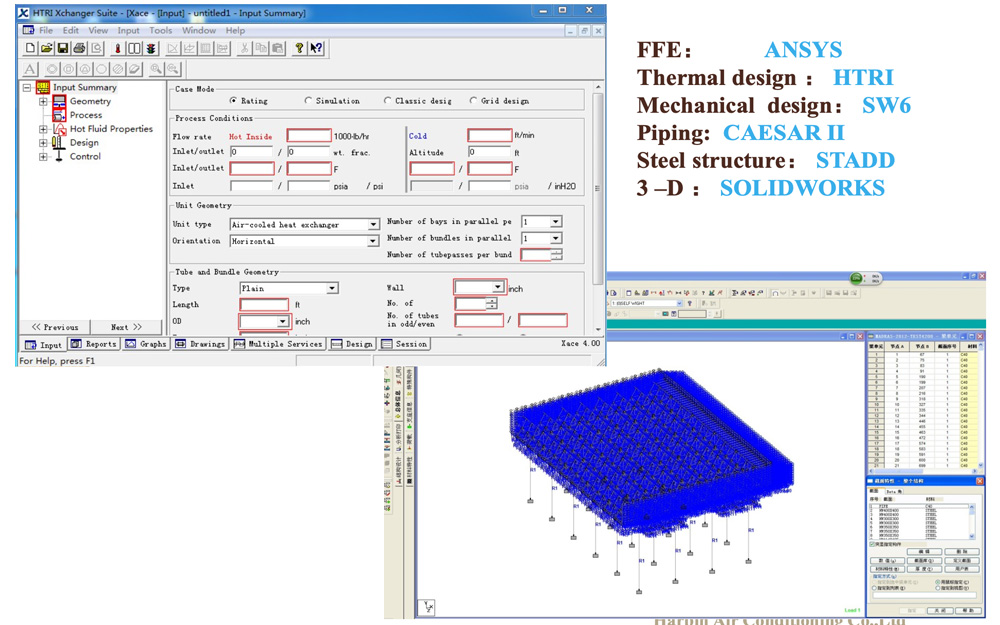

Finite Element Analysis
Several types of sofware are used for structural analysis, heat transfer, and fluid flow of heat exchanger systems.

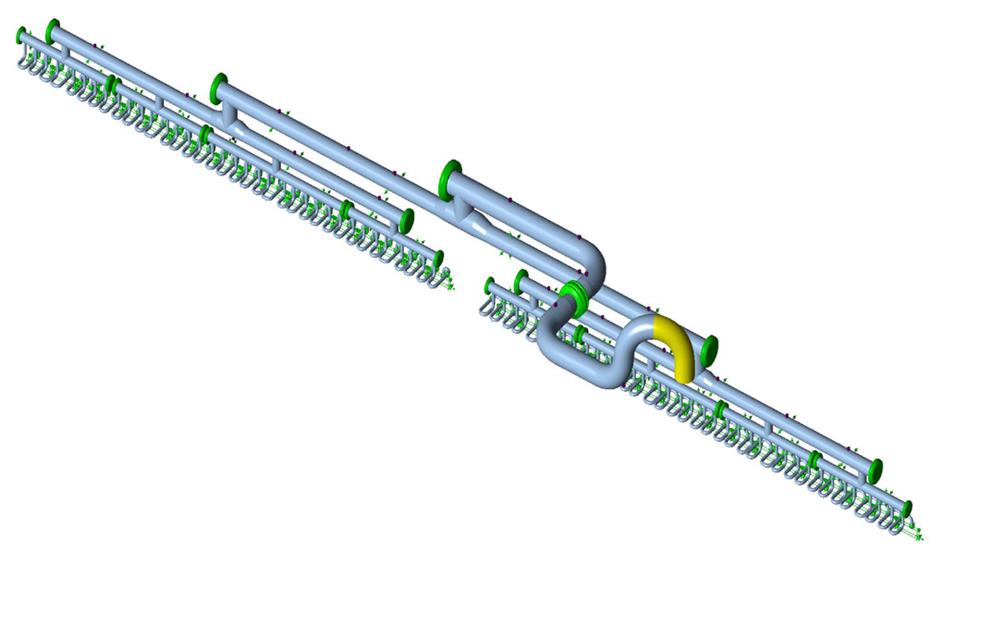

Piping Design
The piping designing includes layout, equipment location, plot lan, pipe routing, 2D or 3D CAD models, and the piping isometrics.
Design Drawings
3D models are created to visualize, check, change, and perform detailed engineering of modules.
Heat Exchanger Production
Below is some heat exchanger production processes.

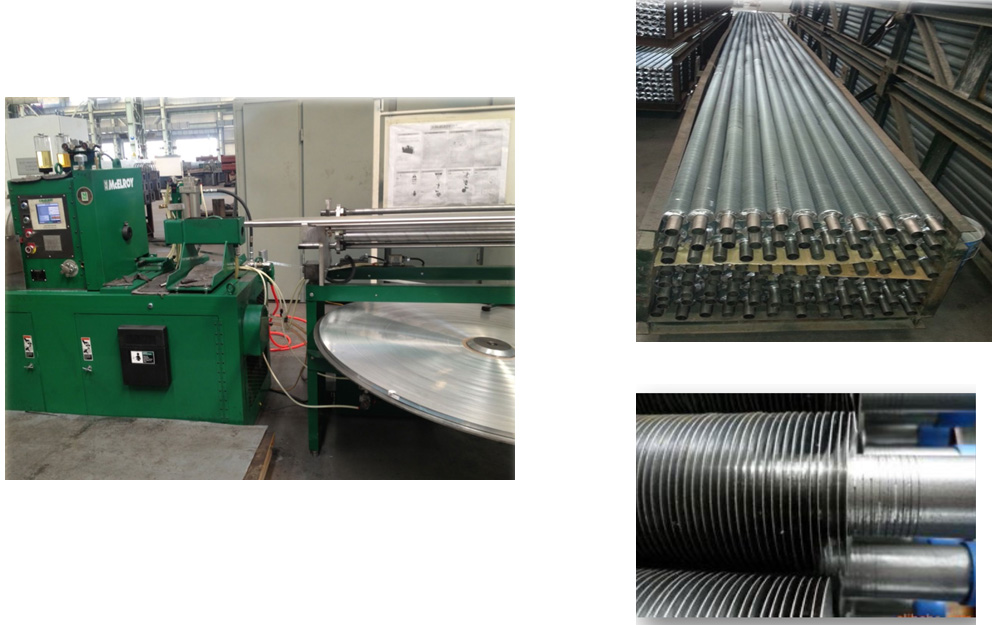

Finned Tube Production
Specialized equipment for producting finned tubes.

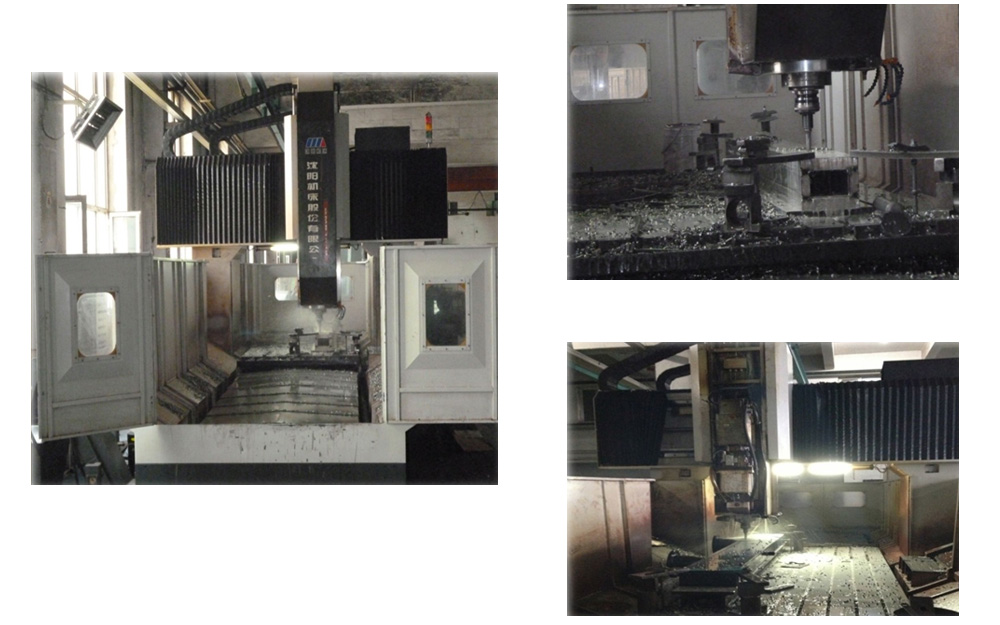

CNC Machining Center
A range of high-accuraccy numerical equipment is used to fabricate and machine the heat exchanger parts.

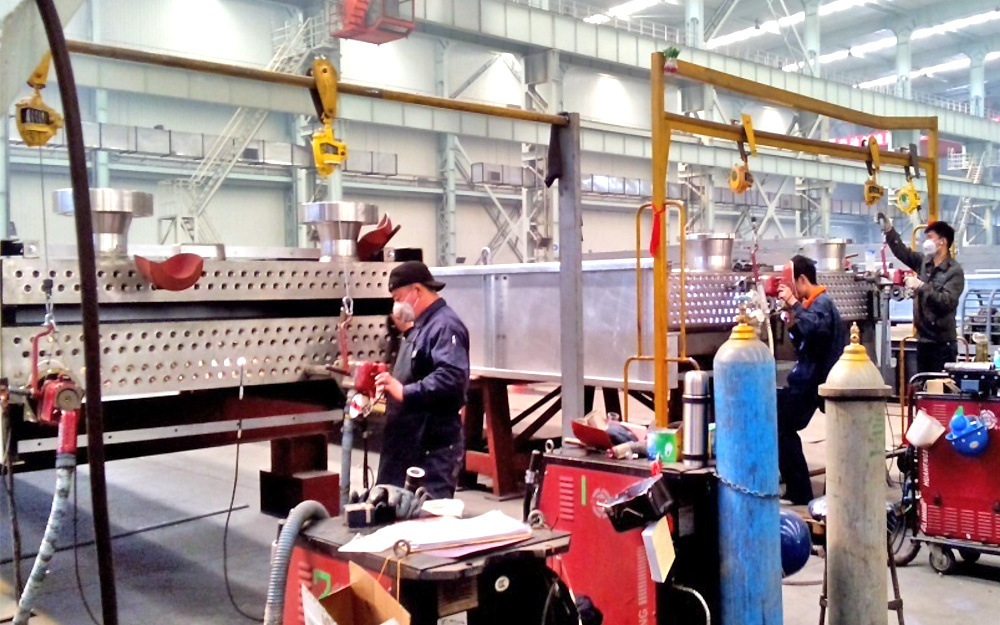

Tube Welding Process
Qualified welding operators perform tube welding using spcialzed equipment.

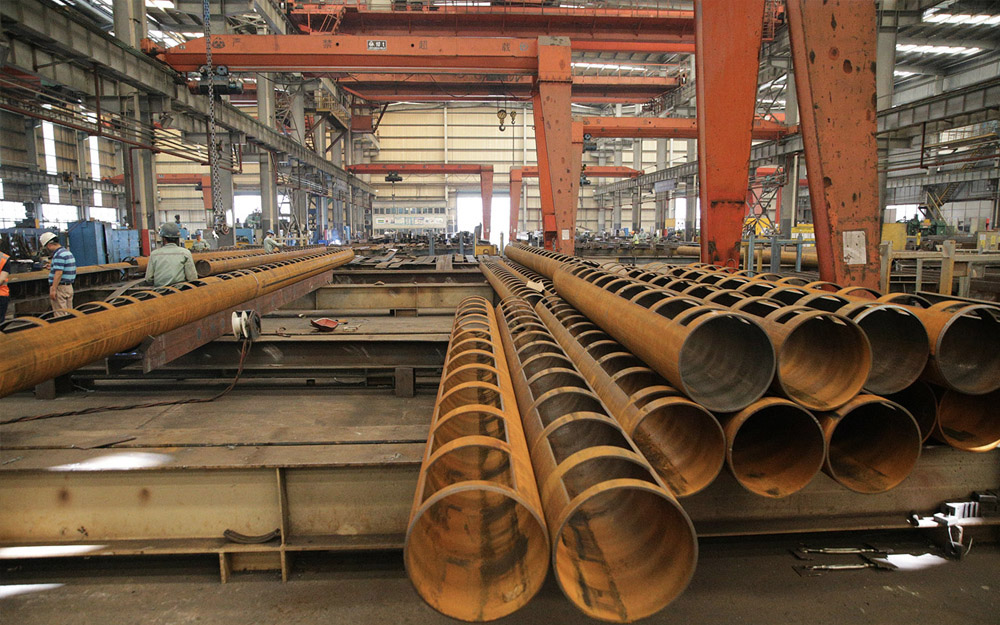

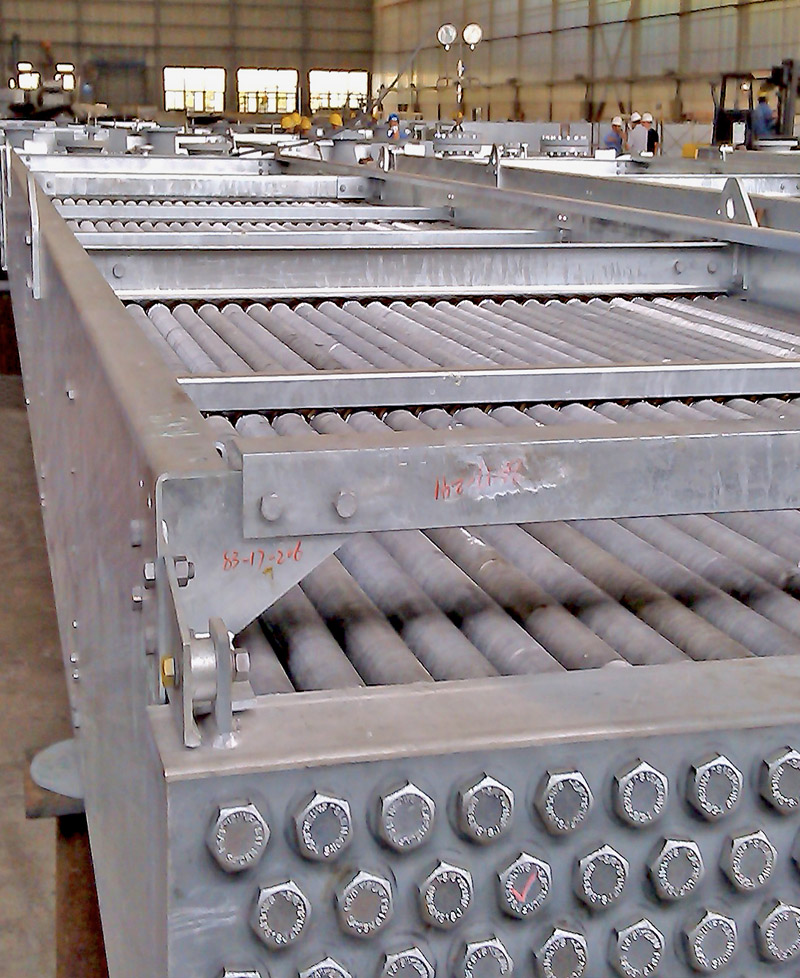

Header Manifold Fabrication
Pipe sections are fabricated into header manifolds for an ACC unit.

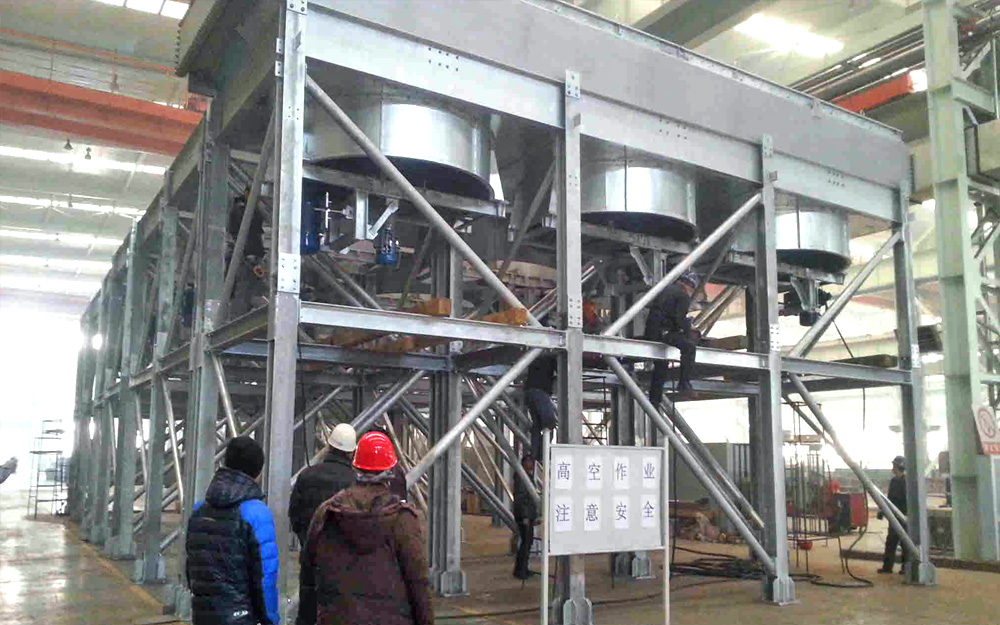

Factory Acceptance Test (FAT)
A Factory Acceptance Test is performed to ensure the equipment performs according to the design specifications.
Heat Exchangers Delivered by Modern Group
Below are some heat exchangers that our team has already delivered.

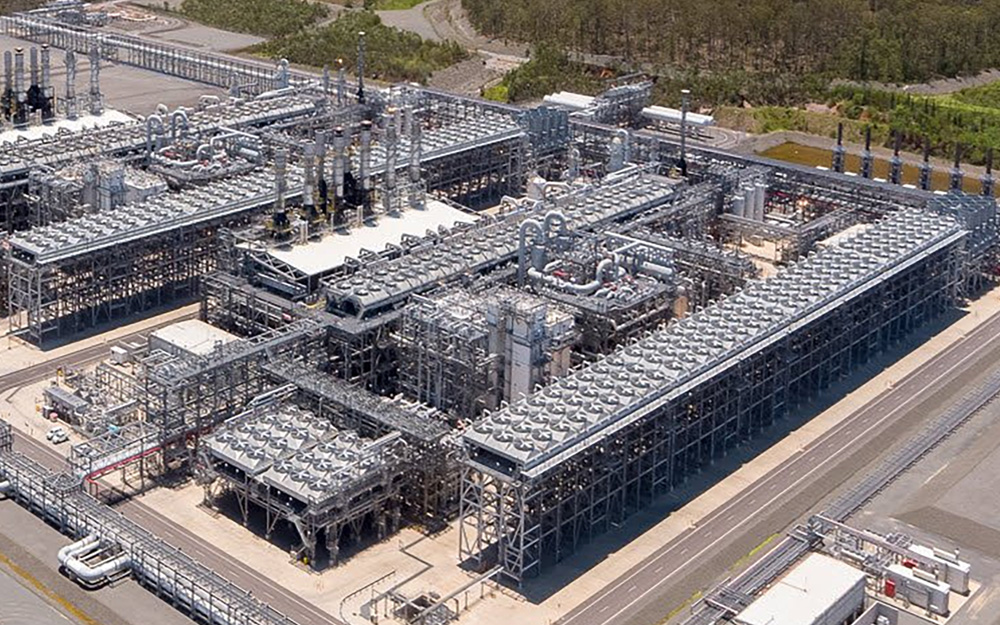

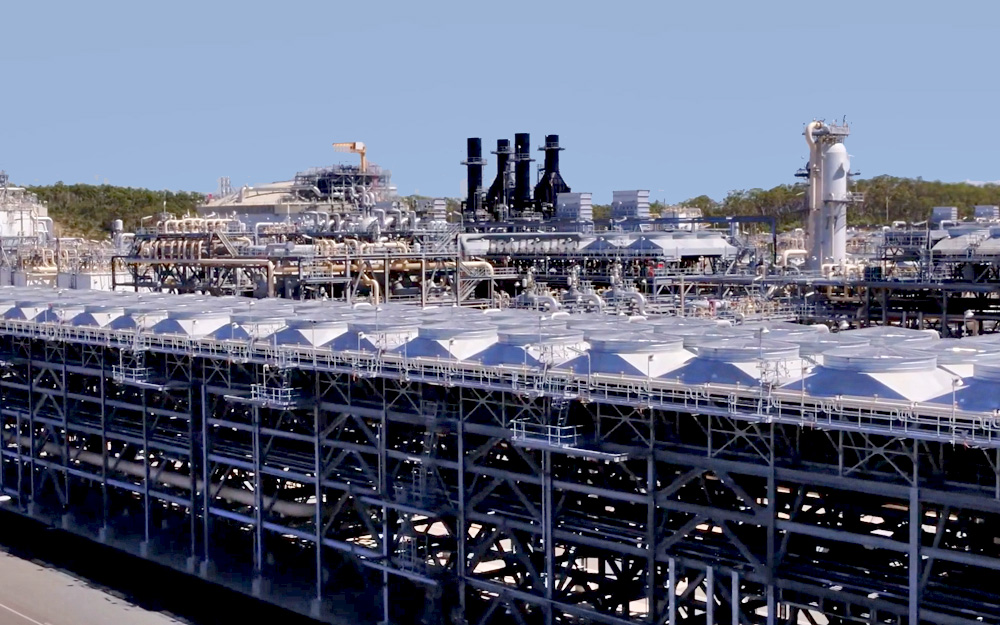

Australia-Pacific LNG
MDHI supplied APLNG with heat exchangers, steel structures, walkways, platforms and gratings.
Gladstone LNG
MDHI supplied CGLNG with heat exchangers, steel structures, walkways, platforms and gratings.

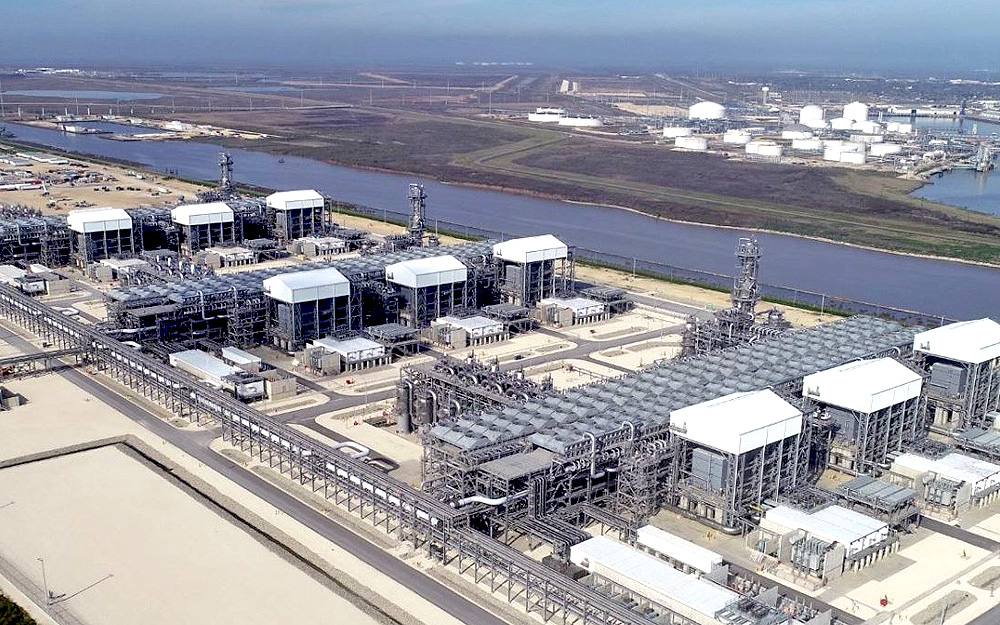

Freeport LNG
MDHI supplied FLNG plant modular air-cooled condensers, steel structures, support steel, walkways, handrails, and gratings.

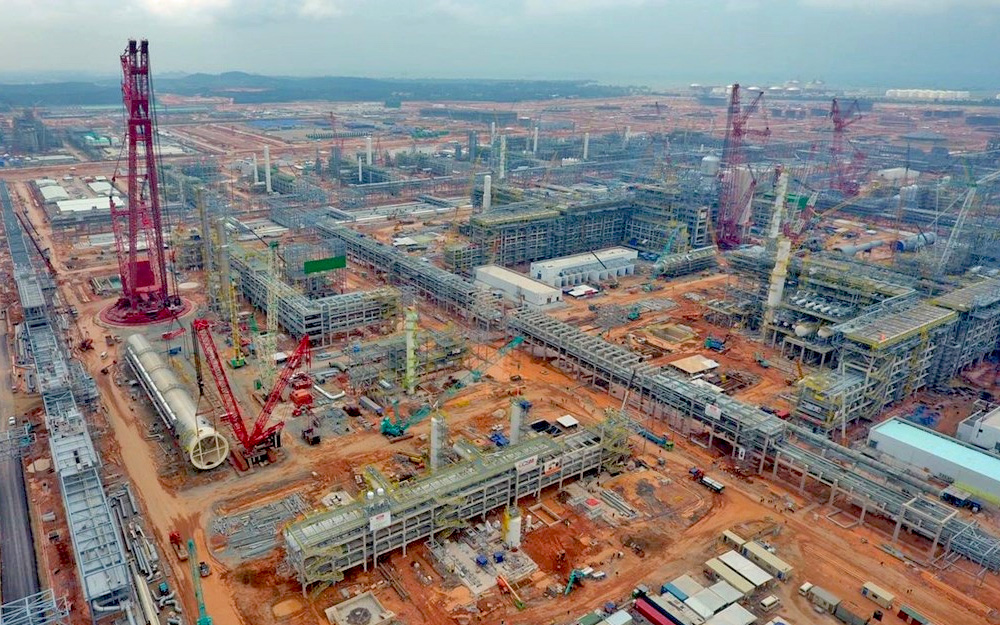

Petronas Rapid Project
MDHI supplied Petronas RAPID Project with modular air-cooled condensers.
